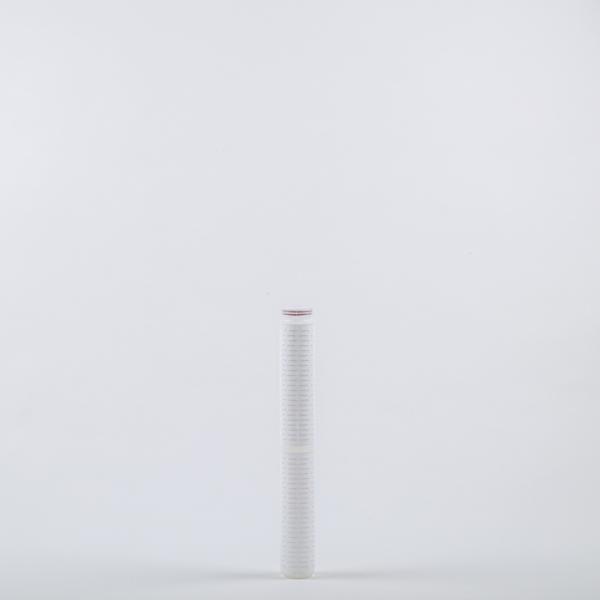

20" 1.5μM Glass Fiber Pleated Filter Cartridge For Pharmaceutical
Air Prefiltration
Description of Pharmaceutical water/liquid prefiltration
WECHANGE Glass Fiber Membrane Pleated Cartridge Filters are
constructed with borosilicate glass fiber membranes and excellent
PP support materials. Glass fiber pleated cartridges provide high
and consistent filtration efficiency with a wide filtration rating
range.
Glass fiber pleated cartridge filters have large surface filtering
area, long service life, low initial pressure and wide chemical
compatibility. So they are widely used in high-purity liquid
filtration processing.
Application of Pharmaceutical Air Prefiltration
- Biological prefiltration applications;
- Protection of final membrane filters;
- Particulate/ coarse removal;
- Prefiltration of SVP & LVP;
- Precipitate removal
- Water & air filtration.
Features of Pharmaceutical Air Prefiltration
- High porosity;
- High flow rate, long life;
- Low pressure drop;
- High dirt-holding capacity;
- Cost-effective prefiltration products;
- Good chemical compatibility;
- 100,000-level clean room manufactured;
- 100% integrity test for every filter cartridge before delivery.
Operating Characteristic of Pharmaceutical Air Prefiltration
| Outer Diameter | 2.7”/69mm |
| Length | 10”/254mm 20”/508mm 30”/762mm 40”/1016mm |
| Pore Size | 1, 3, 5, 7, 10μm |
| Max. Operation Temperature | 80℃ |
| Max. Operation Pressure | Forward direction: 0.58 MPa(25±2℃) 0.24MPa(80±2℃) *It not recommend for reverse use |
| Filtration Areas | 5”≥0.34m²; 10”≥0.68m²; 20”≥1.36m² 30”≥2.04m²; 40”≥2.72m² |
| Integrity Testing | Bubble point≥60KPa 50KPa pressure, diffusion flow＜10 ml/min Anhydrous ethanol was used as the wetting solution at 25°C, and
compressed air was used to test the bubble point values against the
diffusion flows. |
| Sterilization | 30 times (121.4℃,30 min offline high-pressure steam sterilization) |
| Bacterial Retention Capacity | Minimum retention rate 107 CFU/cm2 The product was tested against Serratia marcescens (ATCC14756) using ASTM F838 method. |
| Extractable Substance | ＜50 mg/m2 After high-pressure steam sterilization(121.4℃,60 min), 25℃±2℃
immersing in pure water for 24h |
| Biosafety | The endotoxin level＜0.25 EU/ml, and the extraction solution has no
acute toxicity |
| Cleanliness | No fibers or other visible foreign objects were detected in the
filtered liquid. *Lamp test according to the Chinese Pharmacopoeia 2020 edition
<0904> |
Flow Rate of Pharmaceutical Air Prefiltration
Material of Structure of Pharmaceutical Air Prefiltration
| Filter Media | Glass fiber |
| Deflector Layer | Polypropylene |
| Enclosures/Ports | High Temperature Resistance Polypropylene |
| Adapter | Polypropylene |
| Seals | Silicone/EPDM |
Naming Regulations of Pharmaceutical Air Prefiltration
| WF | PL | | 0500 | 10 | A | S |
| Trademark | Form | Filtration Materials | Accuracy | length | Adapter | O ring |
| WECHANFIB | PLEATED | GF Glass fiber | 0150 1.5μm | 5 5” | A 222/ FIN | S Silicone |
| | | | 10 10” | B 222/Flat End Cap | E EPDM |
| | | | 20 20” | C 226/ FIN | V FKM |
| | | | 30 30” | D 226/ Flat End Cap | T PTFE |
| | | | 40 40” | E DOE | |
| Wechange Pleated Filter Cartridge Products List |
| Membrane Material | Type No. | Application | Pore Size | Diameter | Length |
| μm | mm | inch |
| Glass fiber | WF-PL-GF-0150-5-* | Air Prefiltration, Liquid Filtration | 1.5 | 69 | 5" |
| Glass fiber | WF-PL-GF-0150-10-* | 1.5 | 69 | 10" |
| Glass fiber | WF-PL-GF-0150-20-* | 1.5 | 69 | 20" |
| Glass fiber | WF-PL-GF-0150-30-* | 1.5 | 69 | 30" |
| Glass fiber | WF-PL-GF-0150-40-* | 1.5 | 69 | 40" |
| Adaptor | The "*" Indicate type of CONNECTOR and SEAL RING, they're customizable and have below option codes:
1,Connector:
A: 222/Fin; B: 222/Flat End Cap; C: 226/Fin; D: 226/Flat End Cap;
E: DOE.
2,Sealing Ring:
S Silicone
E EDPM(Ethylene Propylene Diene Monomer)
V FKM(Fluororubber)
T PTFE(Polytetrafluoroethylene) |
Glass fiber Pleated Filter Cartridge for Pharmaceutical Air
Prefiltration 1.5μm/20"
General Description of Pharmaceutical Air Prefiltration:
A glass fiber pleated filter cartridge used for pharmaceutical air
pre-filtration is a highly efficient filtering component
specifically designed for pharmaceutical industry air purification
systems. The application of these filter cartridges in the
pharmaceutical industry is critical, as they provide high-quality
air filtration, which helps to ensure a sterile production
environment. This, in turn, guarantees the quality and safety of
the pharmaceutical production.
Application of Pharmaceutical Air Prefiltration:
1.Pharmaceutical industry: serum and blood product filtration, cell
culture media pre-filtration, vaccine purification filtration, air
prefiltration.
2.Food industry: wine clarification filtration, draft beer
pre-filtration, air prefiltration.
Features and Benefits of Pharmaceutical Air Prefiltration:
* With high efficiency filtration capabilities, it effectively
removes particles, bacteria, viruses, and other contaminants from
the air, ensuring that the air entering the pharmaceutical
production area meets stringent sterilization standards;
* Utilizing a pleated design, it provides a larger filtration area,
thereby achieving higher filtration efficiency within a limited
space;
* The design takes into account the uniformity of airflow
distribution, ensuring that air flows evenly across the entire
filter surface, avoiding localized high pressure losses, thus
enhancing filtration efficiency and system operational efficiency;
* Strict quality control system, complete production process flow;
* Short delivery period;
* Flexible payment method: T/T, L/C, West Union, Paypal;
* Free technical support;
* Other specific sizes can be customized;
Performance Specifications of Pharmaceutical Air Prefiltration:
Dimensions(nominal):
| OD | 69mm |
| Length | 10"(254mm),20"(508mm),30"(762mm),40"(1016mm) |
Material of Construction:
| Filter Media | Deflector layer | port | Enclosures/Ports | Seals Material |
GF(Glass Fiber) | Polypropylene | Polypropylene | Polypropylene | Silastic/EPDM |
Beer Clarification Filter Cartridge Performance:
| Max. Temperature | 80℃ |
| Max.Differential Pressure | 0.4 MPa(21±2℃) 0.24 MPa(80±2℃) |
| Effective filtration area | ≥0.55 m²/ 10 inch ≥2.04 m²/ 30 inch |
| Integrity testing | Bubble point≥60KPa 50KPa pressure,diffusion flow＜10 ml/min Anhydrous ethanol was used as the wetting solution at 25°C, and
compressed air was used to test the bubble point values against the
diffusion flows. |
| Steam Sterilization | In-line steam sterilization at 121°C for 30min |
| Bacterial retention capacity | Minimum retention rate 107 CFU/cm2 The product was tested against Serratia marcescens (ATCC14756)
using ASTM F838 method. |
| Extractable substance | ＜50 mg/m² After autoclaving (123°C, 60 min), soak in purified water at 25°C ±
2°C for 24 hours. |
| Biosafety | Endotoxin less than 0.25 EU/ml, extracts not acutely toxic |
| Cleanness | No fiber or other visible foreign matter was detected in the
filtrate. Lamp test according to the Chinese Pharmacopoeia 2020 edition
<0904>. |
