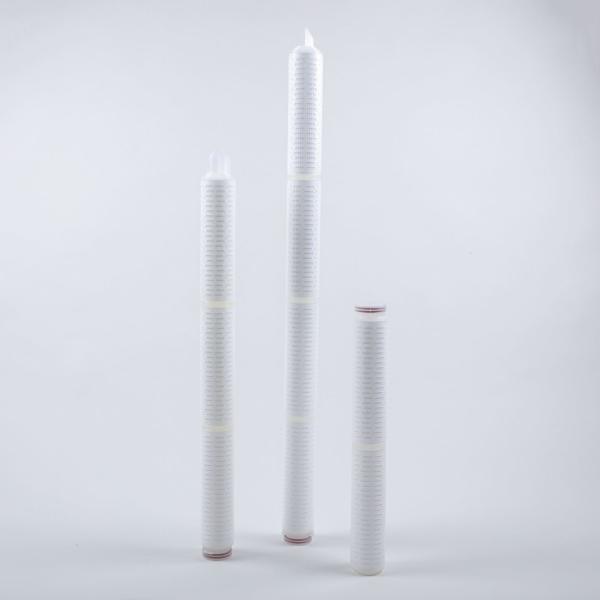

1μM 40" PP Pleated Filter Cartridge For Pharmaceutical Water Liquid
Prefiltration
Description of Pharmaceutical water/liquid prefiltration
WECHANGE PP membrane filters are high efficiency depth type filters
constructed entirely of chemically resistant polypropylene. They
are economical, premium quality products that deliver consistently
high filtration efficiency, superior flow rates, substantial dirt
holding capacity, and exceptionally long service life.
All-polypropylene construction makes it a cost-effective choice for
clarification and prefiltration applications.
WECHANGE PP membrane filters are ideal for clarification,
polishing, bioburden reduction and prefiltration applications. It
is compatible with a wide range of chemicals and cleaning agents.
Application of Pharmaceutical water/liquid prefiltration
- Filtration of pharmaceutical and biological product and process
liquids;
- Filtration of cosmetics and personal care product liquids;
- Filtration of microelectronic chemicals, solvents, UPW and CMP
slurries;
- Filtration of wine, beer, mineral water, soft drinks and other
beverages;
- Filtration of water purification systems;
- Filtration of chemical process.
Features of Pharmaceutical water/liquid prefiltration
- Absolute liquid ratings from 1 µm to 10 µm;
- Self-bonded, non-fiber-releasing filter media;
- All-polypropylene construction;
- High flow rates;
- High dirt holding capacity;
- Wide chemical compatibility;
- 100,000-level clean room manufactured;
- 100% integrity test for every filter cartridge before delivery.
Operating Characteristic of Pharmaceutical water/liquid
prefiltration
| Outer Diameter | 2.7”/69mm |
| Length | 10”/254mm 20”/508mm 30”/762mm 40”/1016mm 60”/1524mm |
| Pore Size | 1, 3, 5, 7, 10μm |
| Max. Operation Temperature | 80℃ |
| Max. Operation Pressure | Forward direction: 0.58 MPa(25±2℃) 0.24MPa(80±2℃) *It not recommend for reverse use |
| Food Contactability | All ingredients are compliant GB 4806.7-2016 |
| Filtration Areas | 5”≥0.34m²; 10”≥0.68m²; 20”≥1.36m² 30”≥2.04m²; 40”≥2.72m² |
| Integrity Testing | Bubble point≥60KPa 50KPa pressure, diffusion flow＜10 ml/min Anhydrous ethanol was used as the wetting solution at 25°C, and
compressed air was used to test the bubble point values against the
diffusion flows. |
| Sterilization | 30 times (121.4℃,30 min offline high-pressure steam sterilization) |
| Bacterial Retention Capacity | Minimum retention rate 107 CFU/cm2 The product was tested against Serratia marcescens (ATCC14756) using ASTM F838 method. |
| Extractable Substance | ＜50 mg/m2 After high-pressure steam sterilization(121.4℃,60 min), 25℃±2℃
immersing in pure water for 24h |
| Biosafety | The endotoxin level＜0.25 EU/ml, and the extraction solution has no
acute toxicity |
| Cleanliness | No fibers or other visible foreign objects were detected in the
filtered liquid. *Lamp test according to the Chinese Pharmacopoeia 2020 edition
<0904> |
| Filtration direction | Outside-inside |
Flow Rate of Pharmaceutical water/liquid prefiltration
Material of Structure of Pharmaceutical water/liquid prefiltration
| Filter Media | Polypropylene |
| Deflector Layer | Polypropylene |
| Enclosures/Ports | High Temperature Resistance Polypropylene |
| Adapter | Polypropylene |
| Seals | Silicone/EPDM |
Naming Regulations of Pharmaceutical water/liquid prefiltration
| WF | PL | P | 0500 | 10 | A | S |
| Trademark | Form | Filtration Materials | Accuracy | length | Adapter | O ring |
| WECHANFIB | PLEATED | P PP | 0100 1um | 5 5” | A 222/ FIN | S Silicone |
| | | 0300 3um | 10 10” | B 222/Flat | E EPDM |
| | | 0500 5um | 20 20” | C 226/ FIN | V FKM |
| | | 0700 7um | 30 30” | D 226/ Flat | T PTFE |
| | | 1000 10um | 40 40” | E DOE | |
| Wechange Pleated Filter Cartridge Products List |
| Membrane Material | Type No. | Application | Pore Size | Diameter | Length | Adaptor |
| μm | mm | inch |
| PP | WF-PL-P-0100-05-* | Liquid Clarification, Liquid Filtration, Sewage Filtration,
Security Filtration,
Clarification Filtration, Beverage Pre Filtration, Microelectronic
Liquid Pre Filtration, Photoresists Prefiltration, Organic Solvents
Pre Filtration, Air Prefiltration. | 1 | 69 | 5" | The "*" Indicate type of CONNECTOR and SEAL RING, they're customizable and have below option codes:
1,Connector:
A 222/Fin
B 222/Flat End Cap
C 226/Fin
D 226/Flat End Cap
E DOE
2,Sealing Ring:
S Silicone
E EDPM(Ethylene
Propylene Diene
Monomer)
V FKM (Fluororubber)
T PTFE(Polytetra-
fluoroethylene) |
| PP | WF-PL-P-0100-10-* | 1 | 69 | 10" |
| PP | WF-PL-P-0100-20-* | 1 | 69 | 20" |
| PP | WF-PL-P-0100-30-* | 1 | 69 | 30" |
| PP | WF-PL-P-0100-40-* | 1 | 69 | 40" |
| PP | WF-PL-P-0300-05-* | 3 | 69 | 5" |
| PP | WF-PL-P-0300-10-* | 3 | 69 | 10" |
| PP | WF-PL-P-0300-20-* | 3 | 69 | 20" |
| PP | WF-PL-P-0300-30-* | 3 | 69 | 30" |
| PP | WF-PL-P-0300-40-* | 3 | 69 | 40" |
| PP | WF-PL-P-0500-05-* | 5 | 69 | 5" |
| PP | WF-PL-P-0500-10-* | 5 | 69 | 10" |
| PP | WF-PL-P-0500-20-* | 5 | 69 | 20" |
| PP | WF-PL-P-0500-30-* | 5 | 69 | 30" |
| PP | WF-PL-P-0500-40-* | 5 | 69 | 40" |
| PP | WF-PL-P-0700-05-* | 7 | 69 | 5" |
| PP | WF-PL-P-0700-10-* | 7 | 69 | 10" |
| PP | WF-PL-P-0700-20-* | 7 | 69 | 20" |
| PP | WF-PL-P-0700-30-* | 7 | 69 | 30" |
| PP | WF-PL-P-0700-40-* | 7 | 69 | 40" |
| PP | WF-PL-P-1000-05-* | 10 | 69 | 5" |
| PP | WF-PL-P-1000-10-* | 10 | 69 | 10" |
| PP | WF-PL-P-1000-20-* | 10 | 69 | 20" |
| PP | WF-PL-P-1000-30-* | 10 | 69 | 30" |
| PP | WF-PL-P-1000-40-* | 10 | 69 | 40" |
PP Pleated Filter Cartridge for Pharmaceutical water/liquid
prefiltration 1μm/40"
General Description of Pharmaceutical water/liquid prefiltration:
PP folded filter cartridges typically employ multiple technologies
such as microfiltration, deep filtration, and adsorption
filtration, ensuring that no harmful substances are released when
in contact with liquids, meeting food safety standards. These PP
folded filter cartridges are characterized by their high filtration
efficiency, stable chemical properties, and ease of maintenance,
effectively removing suspended particles from water and ensuring
its purity.
Application of Pharmaceutical water/liquid prefiltration :
1.Medical wastewater filtration
2.Biological product clarifying filtration
3.Blood product filtration
Features and Benefits of Pharmaceutical water/liquid prefiltration:
* Different filter media with varying pore sizes can be selected
based on different filtration requirements, to accommodate the
removal of particles of different sizes and achieve precise
filtration effects.
* The design includes structures that facilitate cleaning and
replacement of the filter media, reducing maintenance costs and
downtime, and ensuring continuous and stable filtration
performance.
* The design and production process strictly complies with Good
Manufacturing Practices (GMP) for pharmaceutical production,
ensuring the cleanliness, reliability of the equipment, and
compliance with operational procedures.
* Strict quality control system, complete production process flow;
* Short delivery period;
* Flexible payment method: T/T, L/C, West Union, Paypal;
* Free technical support;
* Other specific sizes can be customized
* MOQ 1 piece;
* FREE sample.
Performance Specifications of Pharmaceutical water/liquid
prefiltration:
Dimensions(nominal):
| OD | 68mm |
| Length | 10"(254mm),20"(508mm),30"(762mm),40"(1016mm) |
Material of Construction:
| Filter Media | Deflector layer | port | Enclosures/Ports | Seals Material |
| Polypropylene | Polypropylene | Polypropylene | Polypropylene | Silastic/EPDM |
Beer Clarification Filter Cartridge Performance:
| Maximum working temperature | 80℃ |
| Maximum working pressure | Forward: 0.5 MPa (25 ± 2℃) 0.2MPa(60±2℃) This product is not recommended for reverse use |
| Filter area | ≥ 0.68 m² / 10 inch ≥ 2.04 m² / 30 inch |
| Steam sterilizing | 30 times (123℃, 30 min off-line high pressure steam sterilization) |
| pH range | 1-14 |
| Extractive substances | ＜50 mg/m2 After autoclave sterilization (123°C, 60 min), the cells were
immersed in pure water at 25°C±2°C for 24 hours. |
| Biosafety | Endotoxin was lower than 0.25 EU/ml, and the extract had no acute
toxicity. |
| Merit rating | Fibers and other visible foreign matters were not detected in the
filtrate. According to the lamp inspection method stipulated in the 2020
edition of〈Chinese Pharmacopoeia〉. |
| Food accessibility | All components were consistent to GB 4806.7-2016 |
