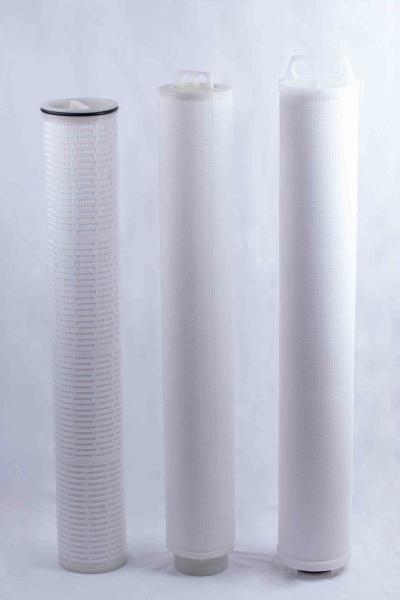

Water Treatment 5μM 40" PP High Flow Filter Cartridge
Description of for Water Treatment
WECHANG high flow filter cartridge are coreless, single open-ended
filters that offer high filtration efficiency. These filters have a
large diameter and laid over pleated cartridge with an
inside-to-outside flow pattern that prevents debris from escaping
the filter. The high flow rate at 1900 lpm or 500 gpm for a 60-inch
length element allows for fewer cartridge change-outs.
Application of for Water Treatment
- CMP Filtration;
- Liquid prefiltration;
- Sewage filtration;
- Security filtration;
- Clarification filtration.
Features of for Water Treatment
- Easy to install, saving, less filter element replacement, help
customers save labor costs;
- Filtration efficiency up to 99.8%.
- Made entirely of polypropylene material, without any adhesives, and
with low leaching;
- Large area filtration with high throughput;
- Core free structure;
- Inside-to-outside flow pattern that traps contaminant inside the
element, thus preventing polluting the treated water during the
cartridge change-out;
- High flow rate & long life;
- High pollution tolerance.
- 100,000-level clean room manufactured;
- 100% integrity test for every filter cartridge before delivery.
Operating Characteristic of for Water Treatment
| Outer Diameter | 6”/158mm |
| Length | 20”/508mm 40”/1016mm 60”/1524mm |
| Pore Size | 0.7, 1.5, 10, 20, 30, 70, 100μm |
| Max. Operation Temperature | 80℃ |
| Max. Operation Pressure | Forward direction: 0.58 MPa(25±2℃) 0.24MPa(80±2℃) *It not recommend for reverse use |
| Filtration Areas | 20”≥6m²; 40”≥12m²; 60”≥18m². |
| Integrity Testing | Bubble point≥60KPa 50KPa pressure, diffusion flow＜10 ml/min Anhydrous ethanol was used as the wetting solution at 25°C, and
compressed air was used to test the bubble point values against the
diffusion flows. |
| Sterilization | 30 times (121.4℃,30 min offline high-pressure steam sterilization) |
| Bacterial Retention Capacity | Minimum retention rate 107 CFU/cm2 The product was tested against Serratia marcescens (ATCC14756) using ASTM F838 method. |
| Extractable Substance | ＜50 mg/m2 After high-pressure steam sterilization(121.4℃,60 min), 25℃±2℃
immersing in pure water for 24h |
| Biosafety | The endotoxin level＜0.25 EU/ml, and the extraction solution has no
acute toxicity |
| Cleanliness | No fibers or other visible foreign objects were detected in the
filtered liquid. *Lamp test according to the Chinese Pharmacopoeia 2020 edition
<0904> |
Flow Rate of for Water Treatment
Material of Structure of for Water Treatment
| Filter Media | Polypropylene |
| Deflector Layer | Polypropylene |
| Enclosures/Ports | High Temperature Resistance Polypropylene |
| Adapter | Polypropylene |
| Seals | Silicone/EPDM |
Naming Regulations of for Water Treatment
| WF | PL | P | 0022 | 40 | | S |
| Trademark | Form | Filtration Materials | Accuracy | length | Adapter | O ring |
| WECHANFIB | PLEATED | P PP | 0070 0.7μm | 20 20” | | S Silastic |
| | Blank EVOH | 0150 1.5μm | 40 40” | | E EPDM |
| | | 1000 10μm | 60 60” | | V FKM |
| | | 2000 20μm | | | T PTFE |
| | | 3000 30μm | | | |
| | | 7000 70μm | | | |
| | | 0000 100μm | | | |
| Wechange Pleated Filter Cartridge Products List |
| Membrane Material | Type No. | Application | Pore Size | Diameter | Length | Adaptor |
| μm | mm | inch |
| PP/PO | WF-HF-P-0070-20-* | Security Filtration, Clarification Filtration, Liquid Pre
Filtration | 0.7 | 158 | 20" | |
| PP/PO | WF-HF-P-0070-40-* | 0.7 | 158 | 40" | |
| PP/PO | WF-HF-P-0070-60-* | 0.7 | 158 | 60" | |
| PP/PO | WF-HF-P-0150-20-* | 1.5 | 158 | 20" | |
| PP/PO | WF-HF-P-0150-40-* | 1.5 | 158 | 40" | |
| PP/PO | WF-HF-P-0150-60-* | 1.5 | 158 | 60" | |
| PP/PO | WF-HF-P-1000-20-* | 10 | 158 | 20" | |
| PP/PO | WF-HF-P-1000-40-* | 10 | 158 | 40" | |
| PP/PO | WF-HF-P-1000-60-* | 10 | 158 | 60" | |
| PP/PO | WF-HF-P-2000-20-* | 20 | 158 | 20" | |
| PP/PO | WF-HF-P-2000-40-* | 20 | 158 | 40" | |
| PP/PO | WF-HF-P-2000-60-* | 20 | 158 | 60" | |
| PP/PO | WF-HF-P-3000-20-* | 30 | 158 | 20" | |
| PP/PO | WF-HF-P-3000-40-* | 30 | 158 | 40" | |
| PP/PO | WF-HF-P-3000-60-* | 30 | 158 | 60" | |
| PP/PO | WF-HF-P-7000-20-* | 70 | 158 | 20" | |
| PP/PO | WF-HF-P-7000-40-* | 70 | 158 | 40" | |
| PP/PO | WF-HF-P-7000-60-* | 70 | 158 | 60" | |
| PP/PO | WF-HF-P-0000-20-* | 100 | 158 | 20" | |
| PP/PO | WF-HF-P-0000-40-* | 100 | 158 | 40" | |
| PP/PO | WF-HF-P-0000-60-* | 100 | 158 | 60" | |
PP High Flow Filter Cartridge for Water Treatment 5μm/40"
General Description of for Water Treatment :
High Flow Filter Cartridge is made of 6 "large diameter structure
folding and welding production, using (internal) external pressure
type, large filtering area, high pollution absorption, large flux.
Widely used in various industries security filtration, circulating
water filtration, liquid impurity filtration.
Application of for Water Treatment :
1.Security filtration
2.Clarification filtration
Features and Benefits of for Water Treatment:
* High flow rate, long life
* The production environment is one hundred thousand dust-free
clean workshop
* High pollution tolerance
* Strict quality control system, complete production process flow;
* Short delivery period;
* Flexible payment method: T/T, L/C, West Union, Paypal;
* Free technical support;
Performance Specifications of for Water Treatment:
Dimensions(nominal):
Material of Construction:
| Filter Media | Deflector layer | port | Enclosures/Ports | Seals Material |
| Polypropylene | Polypropylene | Polypropylene | Polypropylene | Silastic/EPDM |
Beer Clarification Filter Cartridge Performance:
| Biosafety | All ingredients comply with USP (United States Pharmacopoeia) Level
6 plastic testing |
| Food Accessibility | All ingredients comply with GB 4806.7-2016 |
| Executive Standard | Q/WCF 001-2021 |
| Cleanliness | The product does not have any particles, fibers, or other foreign
objects falling off |
| The Maximum Work Temperature | 80℃(△P 0.1Mpa) |
| Effective filtration area | ≥12 m2/40” |
| PH | 1-14 |
| Suggesting Renewal Pressure Difference | 0.2MPa |
